Looking for a machine that guarantees maximum precision and provides simple, intuitive assistance during all bending operations? The SIMASV CNC-controlled horizontal press brake is the ideal solution for you.
The new SIMASV Interface CNC software comes with a modern touchscreen display, powered by a high-performance motherboard with dual LAN, designed for maximum ease of use during every stage of bending.
Set up your production program: the CNC control of our horizontal press brake guides you step-by-step, helping you quickly achieve your desired results with the highest precision.
Programs can be created using traditional alphanumeric input or by directly drawing 2D parts through a simple, integrated graphic editor.
SIMASV Interface CNC software aids the operator by visually displaying the optimal bending sequence, ensuring even less experienced users can achieve top-quality results. It also allows you to import DXF files, including angles and radii information, and supports 3D simulation, including the automatic or manual search for the best bending sequence. A tool editor is also available through templates or DXF import.

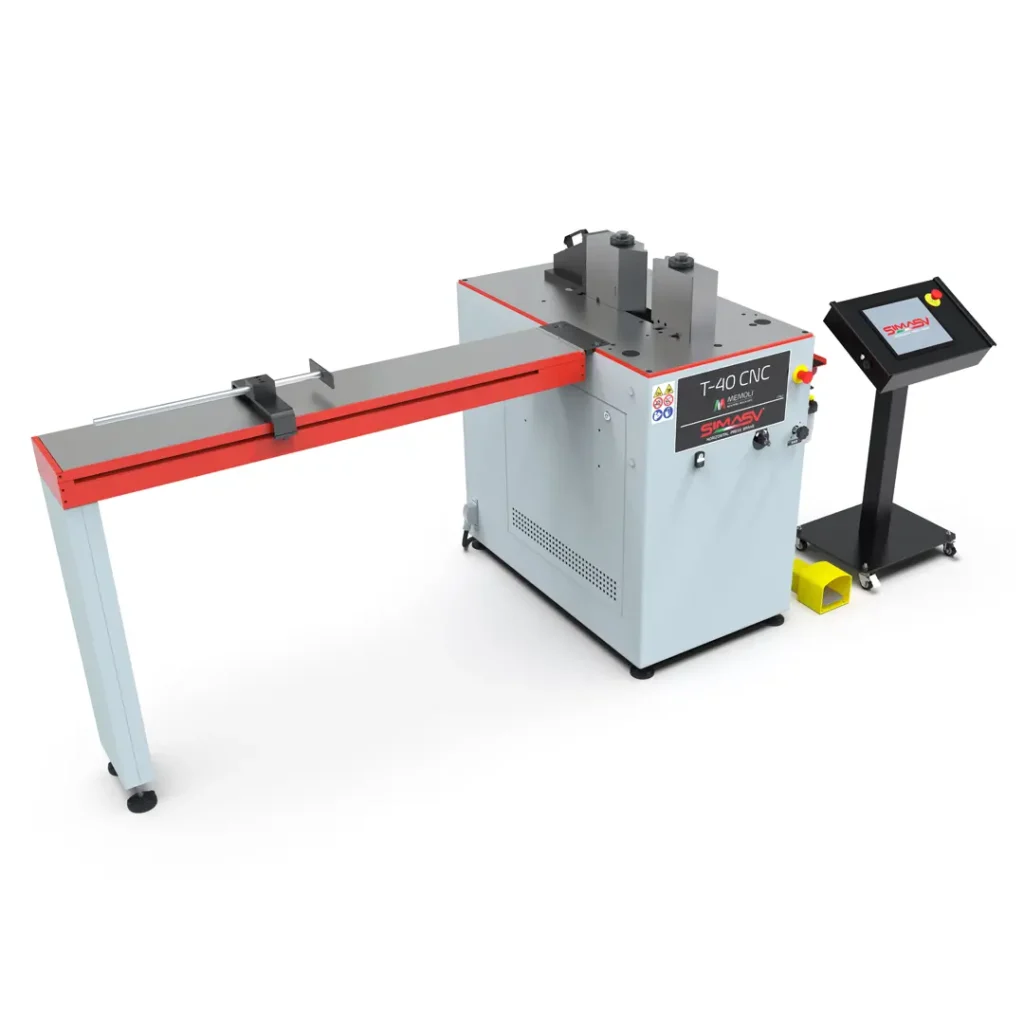

The CNC system fully controls the new automatic positioner, available in 1, 2, or 3-meter lengths, enabling fast and precise workpiece positioning with a brushless motor.
SIMASV CNC horizontal press brakes are built with a robust structure and are available in a range of power options: 22, 40, 70, 100, 120, and 150 tons.
Thanks to their innovative design, with the cylinder positioned beneath the work surface and hydraulic adjustment of the carriage movement, these machines offer a spacious, unobstructed work area. This design enables 360° bending capability, allowing the operator to control the process from a front-facing position for enhanced safety and ergonomics.
Operating these horizontal press brakes is incredibly easy and intuitive – the operator will be able to fully utilize the machine’s capabilities in no time.
Infinite Applications in One Machine
The versatility of SIMASV horizontal press brakes makes these machines essential for improving the profitability and reliability of various processes:
- Bending
- Straightening
- Punching
- Cutting
- Shearing
- Forming

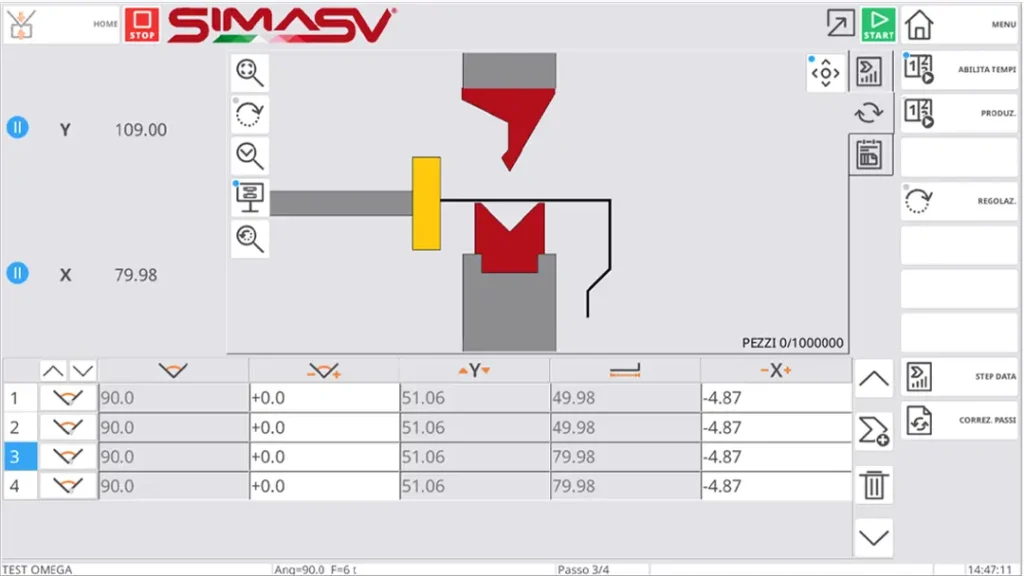

SIMASV Interface software CNC
All horizontal press brakes in the CNC series are equipped with the SIMASV Interface CNC software, a highly user-friendly control software that operates via a Touch screen.
Thanks to cutting-edge technology, the software provides access to a wide range of essential functions:
- Fast and direct input of angles and lengths
- 2D graphical creation of the bending program
- Workpiece development calculation
- Simulator with automatic or manual search for the best bending sequence
- No limits on the number of programs
- Ability to exchange data via USB stick or network connection with the office
- Guided graphical setup of tools
- Production time management
- DXF import of parts and tools
- Tool editor through templates
- Remote assistance tool
- Industry 4.0 ready
Features
- Brushless automatic positioner available in different lengths: 1, 2, or 3 meters.
- Solid work surface made of stabilized steel.
- Cylinder positioned beneath the work surface.
This unique design is especially useful when the operator requires a spacious, unobstructed work area. It allows the operator to control the process from a front-facing position, providing greater safety and ergonomics. The large work area also offers 360° bending capability. - Forged, heat-treated, and ground steel carriage, protected by a dust scraper.
- Tool holder pins made of alloy steel and heat-treated for enhanced durability.
- Monoblock hydraulic power unit for consistent, reliable operation.
- Forced lubrication system via a manual pump (optional: automatic pump).
- Hydraulic adjustment of carriage advancement for precise control.
- Tool storage shelves for easy access to equipment.
Technical data sheet
| Technical Features | T 22 | T 40 | T 70 |
| Max. operating pressure (Ton – kN) | 22-220 | 40 – 400 | 70-700 |
| Working table dimensions (mm) | 630 x 1100 | 620 x 1100 | 820 x 1720 |
| Working height (mm) | 925 | 950 | 1000 |
| Max. cylinder stroke (mm) | 200 | 250 | 330 |
| Fixing holes on working table (mm) | 2 x Ø 50 | 2 x Ø 50 | 2 x Ø 80 |
| Fixed or movable pins (mm) | 2 x Ø 55 | 2 x Ø 55 | 2 x Ø 80 |
| Flat bending capacity (mm) | 150×10 | 200 x 20 | 200 x 30 |
| Extra high bending (mm) | 400 | 400 | 400 |
| Edge bending capacity (mm) | 60×10 | 100 x 15 / 40 x 40 Ø 40 | 150 x 15 |
| Pipe bending capacity | Ø 1 ½” | Ø 2” | Ø 2 ½ ‘’ |
| Straightening capacity – max. height (mm) | 150 | 150 | 200 |
| Cutting capacity (mm) | 100 x 10 | 120 x 15 | 160 x 15 |
| Oil tank capacity (Lt) | 45 | 45 | 140 |
| Motor (Kw) | 1,5 | 3 | 4 |
| Dimensions (mm) | 1200 x 900 x 920 | 1250 x 900 x 1000 | 1750 x 1380 x 1010 |
| Approx. weight (Kg) | 690 | 780 | 1700 |
| Technical Features | T 100 | T 120 | T 150 |
| Max. pressure (Ton – kN) | 100 – 1000 | 120 –1200 | 150—1500 |
| Working table dimensions (mm) | 880 x 1900 | 880 x 1900 | 1175 x 2200 |
| Working height (mm) | 1050 | 1050 | 1135 |
| Max. carriage stroke (mm) | 330 | 330 | 450 |
| Fixing holes on working table (mm) | 2 x Ø 80 | 2 x Ø 100 | 2 x Ø 120 |
| Fix or movable pins (mm) | 2 x Ø 100 | Ø 120 | Ø 150 |
| Flat bending capacity (mm) | 200 x 35 | 200 x 40 | 200 x 45 |
| Extra high bending (mm) | 450 | 500 | 500 |
| Edge bending capacity (mm) | 150 x 20 | 150 x 20 | 150 x 30 |
| Pipe bending capacity | Ø 3” | Ø 4” | Ø 6” |
| Straightening capacity (mm) | 250 | 300 | 350 |
| Cutting capacity (mm) | 200 x 15 | 200 x 20 | 200 x 20 |
| Oil tank capacity (Lt) | 160 | 160 | 150 |
| Motor (Kw) | 5,5 | 11 | 7,5 |
| Dimensions (W x D x H) | 2000 x 1550 x 1050 | 2000 x 1550 x 1250 | 2000 x 1550 x 1250 |
| Approx. weight (Kg) | 2200 | 2300 | 2800 |
Active angle control

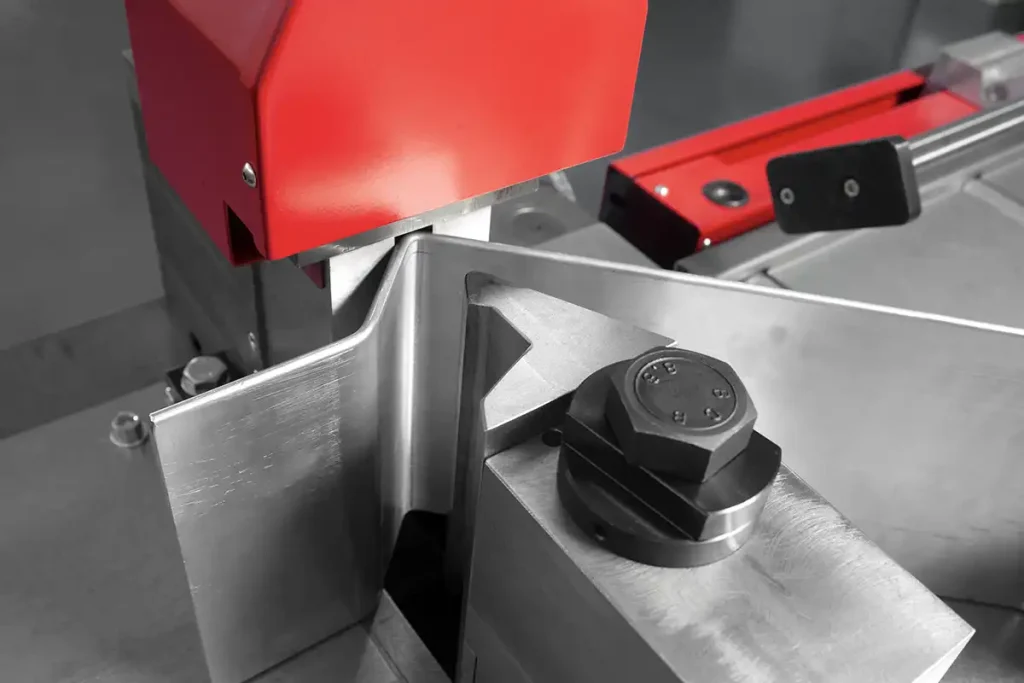

SIMASV CNC horizontal press brakes can be equipped with an accessory for active angle control.
This special tool allows the operator to measure the angle being formed, providing instant feedback that automatically adjusts for material elasticity.
This technology compensates for the elastic response fluctuations of various materials, ensuring precise and repeatable angles from the very first bend, without the need for manual corrections, making the operation much more accurate and easier.
Tools
One Machine, Infinite Possibilities
SIMASV horizontal press brakes can be equipped with a wide range of different tools.
Standard and custom tools are available to meet the specific needs of each customer.
Thanks to this extensive selection, SIMASV press brakes are extremely versatile and suitable for a variety of applications.
Explore the standard tools that SIMASV offers to its customers
